CW Type Cable Glands

Braco CW Brass cable glands are as per BS 6121 Part 1 :1989 and suitable for single wire armoured plastic or rubber sheathed cables. The outer seal grips sheath. These glands provide mechanical cable retention, and electrical continuity via armour wire termination. The use of these glands is recommended in indoor as well as outdoor application because of suitability in most climatic conditions weather proof and water proof.

Technical Specification

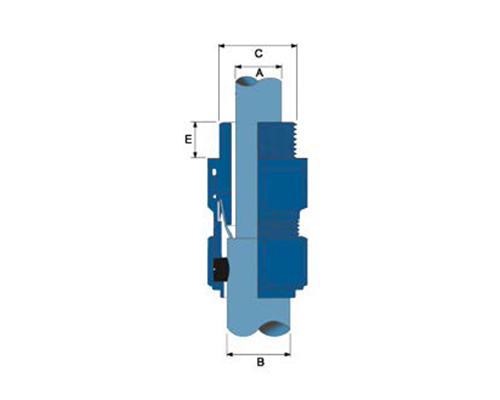

GLAND SIZE ENRTY THERAD  CABLE ACCEPTANCE DETAILS ACROSS FLAT ACROSS CORNER
DIA LENGTH MINIMUM DIA MAX. DIA MAX. ARMOUR DIA
CW-20 S 20 10 11.6 16 0.9/1.25 22 25
CW-20 L 20 10 14 20 0.9/1.25 25.4 28.5
CW-25 S 25 10 19 24 1.25/1.60 30 33.6
CW-25 L 25 10 20 27 1.25/1.60 33 37
CW-32 S 32 10 24 30.5 1.60/2.00 38 43
CW-32 L 32 10 26.2 33 1.60/2.00 40 45
CW-40 S 40 11 30 37 1.60/2.00 44.5 50
CW-40 L 40 11 32.5 41 1.60/2.00 46.5 52
CW-50 S 50 13 40 47.5 2.00/2.50 55 62
CW-50 L 50 13 44 52.6 2.00/2.50 59 66
CW-63 S 63 14 51 60 2.5 69 76
CW-63 L 63 14 55 66 2.5 73 82
CW-75 S 75 15 62 72 2.5 83 94
CW-75 L 75 15 67 78 2.5 87.6 99
CW-90 S 90 20 74 84 2.50/3.15 94 104
CW-90 L 90 20 79 90 2.50/3.15 105 118
