Double Compression Stainless Steel Glands For Armoured Cable (Flameproof)
Meticulously crafted from Grade SS 304/316 stainless steel and precisely machined
to exact sizes, these glands offer superior durability and reliability. Available in a
range of sizes, they accommodate cables up to 1000 sq. mm and control cables with
up to 61 cores.
Certified by the Central Institute of Mining
and Fuel Research, Dhanbad, and BIS
certified, Braco Double Compression
Glands ensure compliance with stringent
quality standards.
Additionally, they are PESO approved, guaranteeing safety and reliability in hazardous environments. Trust Braco for premium-quality flameproof stainless steel cable management solutions.

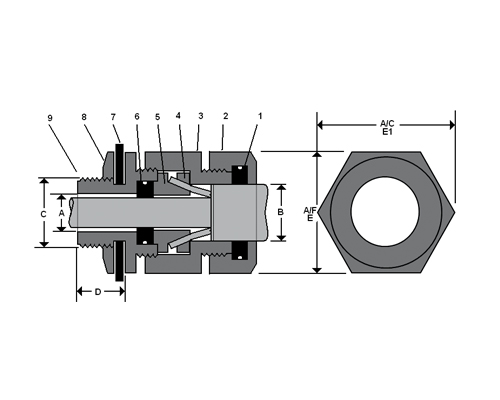

Parts :
| Description | Material |
|---|---|
| Outer Seal | Nitrile/Neoprene Rubber |
| Sealing Nut | SS304/316 |
| Gland Body | SS304/316 |
| Clamping Ring | SS304/316 |
| Armour Clamp | SS304/316 |
| Inner Seal | Nitrile/Neoprene Rubber |
| Flat Washer | Nitrile/Neoprene Rubber |
| Check Nut | SS304/316 |
| Gland Barrel | SS304/316 |
| Thread | ET/Metric/NPT (Without check nut) |
| IP Rating | IP-66 |
| Operating Temperature | -20˚C to +80˚C |
| Finish | Natural Finish |
Details coming soon...
Details coming soon...
Applicable Standard: IS 12943 / IEC-62444 / BS 6121: PART 1/ IS /IEC 60079:PART-1
| BRACO CAT NO. | B | A | A/F E | A/C E1 | Nipple thread Inch | D | Cable OD (mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| ET | MM | NPT | Above | Upto | ||||||
| SSF-3/8" | 13 | 11 | 22 | 25 | 5/8" | M-16 | 1/2" NPT | 25 | 8 | 12 |
| SSF-1/2" | 14 | 11 | 22 | 25 | 5/8" | M-16 | 1/2" NPT | 25 | 8 | 13 |
| SSF-001S | 14 | 13 | 22 | 25 | 3/4" | M-20 | 1/2" NPT | 25 | 8 | 14 |
| SSF-5/8" | 17 | 14 | 23 | 26 | 3/4" | M-20 | 1/2" NPT | 25 | 11 | 15 |
| SSF-01S | 17.5 | 14 | 24 | 27.5 | 3/4" | M-20 | 1/2" NPT | 25 | 12.5 | 16.5 |
| SSF-01 | 18.5 | 15 | 27 | 30 | 3/4" | M-20 | 1/2" NPT | 25 | 15 | 18 |
| SSF-01L | 18.5 | 15 | 27 | 30 | 1" | M-25 | 3/4" NPT | 25 | 15 | 18 |
| SSF-02 | 20.5 | 16 | 30 | 35 | 1" | M-25 | 3/4" NPT | 25 | 18 | 20 |
| SSF-02S | 20.5 | 14 | 30 | 35 | 3/4" | M-20 | 1/2" NPT | 25 | 18 | 20 |
| SSF-03 | 23 | 18 | 30 | 35 | 1" | M-25 | 3/4" NPT | 25 | 20 | 23 |
| SSF-04 | 27 | 20 | 35 | 41 | 1" | M-25 | 3/4" NPT | 25 | 23 | 26 |
| SSF-04L | 27 | 24 | 35 | 41 | 1-1/4" | M-32 | 1" NPT | 25 | 23 | 26 |
| SSF-05 | 31 | 24 | 40 | 46 | 1-1/4" | M-32 | 1" NPT | 25 | 26 | 30 |
| SSF-05L | 31 | 26 | 40 | 46 | 1-1/2" | M-40 | 1-1/4" NPT | 25 | 26 | 30 |
| SSF-06 | 34 | 31 | 47 | 53 | 1-1/2" | M-40 | 1-1/4" NPT | 25 | 30 | 33 |
| SSF-06S | 34 | 24 | 47 | 53 | 1-1/4" | M-32 | 1" NPT | 25 | 30 | 33 |
| SSF-07 | 38 | 32 | 52 | 58 | 1-1/2" | M-40 | 1-1/4" NPT | 25 | 33 | 37 |
| SSF-08 | 42 | 38 | 56 | 64 | 2" | M-50 | 1-1/2" NPT | 25 | 37 | 41 |
| SSF-09 | 47 | 39 | 59 | 67 | 2" | M-50 | 1-1/2" NPT | 25 | 41 | 46 |
| SSF-010 | 53 | 44 | 67.5 | 77 | 2" | M-50 | 1-1/2" NPT | 25 | 46 | 52 |
| SSF-010L | 53 | 50 | 67.5 | 77 | 2-1/2" | M-63 | 2" NPT | 25 | 46 | 52 |
| SSF-011 | 61 | 56 | 80 | 92 | 2-1/2" | M-63 | 2" NPT | 25 | 52 | 60 |
| SSF-012 | 68 | 64 | 85 | 98 | 3" | M-75 | 2-1/2" NPT | 25 | 60 | 66 |
| SSF-013S | 73 | 64 | 99 | 113 | 3" | M-75 | 2-1/2" NPT | 25 | 66 | 72 |
| SSF-013 | 79 | 74 | 99 | 113 | 3-1/4" | M-82 | 3" NPT | 25 | 72 | 78 |
| SSF-014 | 84 | 78 | 105 | 118 | 3-1/2" | M-90 | 3" NPT | 25 | 78 | 83 |
| SSF-015 | 95 | 88 | 115 | 129 | 4" | M-100 | 3-1/2" NPT | 25 | 83 | 93 |
| SSF-016 | 106 | 100 | 125 | 140 | 4-1/2" | M-115 | 4" NPT | 25 | 93 | 104 |
