Braco Nylon PG type Glands are suitable for unarmoured, plastic or rubber sheathed cables. These glands are made from UL approved Nylon PA-66 grade. These Glands provide IP protection upto IP-68 levels. The Claws and seals of excellent design, sealing nut have a click sound and reopen can hold cable firmly and have a wider cable Range. Resistant to salt water, Weak acid, Alcohol, Oil, Grease and Common Solvency.

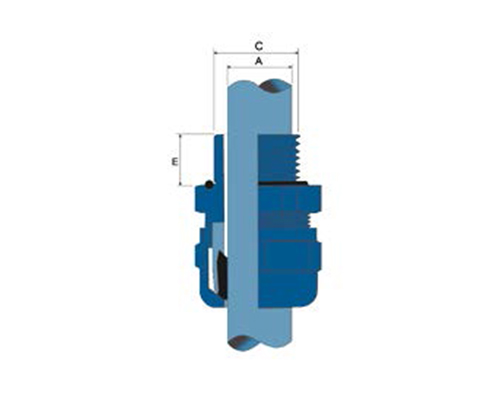

Download Brochure | Gland Size | Cable OD Range | Thread OD C1 | Thread Length C2 | Hex Dimension |
|---|---|---|---|---|
| PPG-7 | 3-6.5 | 12.5 | 8 | 16 |
| PPG-7 S | 2-5 | 12.5 | 8 | 16 |
| PPG-9 | 4-8 | 15.2 | 8 | 19 |
| PPG-9 S | 2-6 | 15.2 | 8 | 19 |
| PPG-11 | 5-10 | 18.6 | 8 | 22 |
| PPG-11 S | 3-7 | 18.6 | 8 | 22 |
| PPG-13.5 | 6-12 | 20.4 | 10 | 24 |
| PPG-13.5 S | 5-9 | 20.4 | 10 | 24 |
| PPG-16 | 10-14 | 22.5 | 10 | 27 |
| PPG-16 S | 7-12 | 22.5 | 10 | 27 |
| PPG-19 | 12-16 | 24 | 10 | 27 |
| PPG-19 S | 10-13 | 24 | 10 | 27 |
| PPG- 21 | 13-18 | 28.3 | 10 | 33 |
| PPG- 21 S | 9-16 | 28.3 | 10 | 33 |
| PPG- 25 | 16-21 | 30 | 11 | 35 |
| PPG- 25 S | 13-18 | 30 | 11 | 35 |
| PPG- 29 | 18-25 | 37 | 12 | 42 |
| PPG- 29 S | 13-20 | 37 | 12 | 42 |
| PPG- 36 | 22-32 | 47 | 14 | 52 |
| PPG- 36 S | 20-26 | 47 | 14 | 52 |
| PPG- 42 | 32-38 | 54 | 14 | 60 |
| PPG- 42 S | 25-31 | 54 | 14 | 60 |
| PPG-48 | 37-44 | 59.3 | 15 | 64 |
| PPG-48 S | 29-35 | 59.3 | 15 | 64 |
| PPG- 63 | 42-50 | 71 | 28 | 77 |
| PPG- 63 S | 32-40 | 71 | 28 | 77 |
| PPG : PG Thread Glands. Suffix 'S' is for smaller dia Rubber. | ||||
| PPGM : Metric Thread Glands. Suffix 'S' is for smaller dia Rubber. | ||||
| Gland Size | Cable OD Range | Thread OD C1 | Thread Length C2 | Hex Dimension |
|---|---|---|---|---|
| PPGM-12 x 1.5 | 3-6.5 | M12 | 8 | 16 |
| PPGM-12 x 1.5 S | 2-5 | M12 | 8 | 16 |
| PPGM-16 x 1.5 | 4-8 | M16 | 8 | 19 |
| PPGM-16 x 1.5 S | 2-6 | M16 | 8 | 19 |
| PPGM-18 x 1.5 | 5-10 | M18 | 8 | 22 |
| PPGM-18 x 1.5 S | 3-7 | M18 | 8 | 22 |
| PPGM-20 x 1.5 | 6-12 | M20 | 10 | 24 |
| PPGM-20 x 1.5 S | 5-9 | M20 | 10 | 24 |
| PPGM-22 x 1.5 | 10-14 | M22 | 10 | 27 |
| PPGM-22 x 1.5 S | 7-12 | M22 | 10 | 27 |
| PPGM-24 x 1.5 | 12-16 | M24 | 10 | 27 |
| PPGM-24 x 1.5 S | 10-13 | M24 | 10 | 27 |
| PPGM-25 x 1.5 | 13-18 | M25 | 10 | 33 |
| PPGM-25 x 1.5 S | 9-16 | M25 | 10 | 33 |
| PPGM-27 x 1.5 | 13-18 | M27 | 10 | 33 |
| PPGM-27 x 1.5 S | 9-16 | M27 | 10 | 33 |
| PPGM-30 x 1.5 | 16-21 | M30 | 11 | 35 |
| PPGM-30 x 1.5 S | 13-18 | M30 | 11 | 35 |
| PPGM-32 x 1.5 | 16-21 | M32 | 11 | 35 |
| PPGM-32 x 1.5 S | 13-18 | M32 | 11 | 35 |
| PPGM-36 x 1.5 | 18-25 | M36 | 12 | 42 |
| PPGM-36 x 1.5 S | 13-20 | M36 | 12 | 42 |
| PPGM-40 x 1.5 | 22-32 | M40 | 14 | 52 |
| PPGM-40 x 1.5 S | 20-26 | M40 | 14 | 52 |
| PPGM-50 x 1.5 | 32-38 | M50 | 14 | 60 |
| PPGM-50 x 1.5 S | 25-31 | M50 | 14 | 60 |
| PPGM-63 x 1.5 | 37-44 | M63 | 15 | 64 |
| PPGM-63 x 1.5 S | 29-35 | M63 | 15 | 64 |
