Wiping Type Cable Glands
Application: For use with SWA, Plastic and Rubber (Elastomer)
Sheathed Cables used in dry indoor condition.
Accessories: Hot Dip Galvanised MS Clamp, Neoprene Gasket.
Material: Brass
Details coming soon...
Details coming soon...

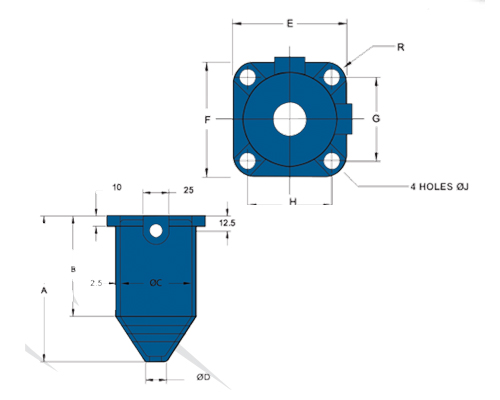

| BRACO CAT NO. | GLAND SIZE | CABLE OD RANGE | A | B | C | D | E | F | G | H | J | R | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BWGX | X | 12-51 MM | 138 | 90 | 62 | 15 | 90 | 90 | 65 | 65 | 11.7 | 12.5 | 2.5 |
| BWGY | Y | 25-78 MM | 155 | 97 | 91 | 33 | 114 | 123 | 94 | 84.5 | 14 | 25 | 2.5 |
| BWGZ | Z | 25-94 MM | 150 | 95 | 106 | 28 | 137 | 137 | 109 | 109 | 14 | -- | 4.5 |
