Bimetallic Terminals - Copper Ring Type

Material : Aluminium 99.5, E Copper

Surface : Bright

These Bimetallic cable Lugs are manufatured out of Aluminium Tubes of E.C . Grade having conductivity of 60% I.A.C.S. as per IS 5082. These Aluminum Lugs are Fused with E.C. Grade Copper Bushes by fusion process. The bimetallic Surface is sealed with special Green colour anti-galvanic compound for preventing bimetallic galvanic electro corrosion. The barrel of the lug is filled with corrosion inhibiting compound and are supplied with PVC cap.

Technical Specification

Download Brochure

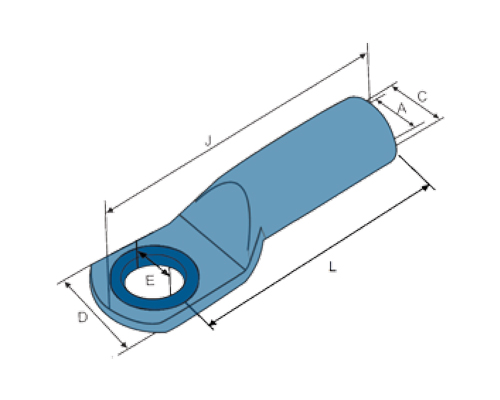

Size Sq. mm	Dimension								Code No.
Size Sq. mm	E	A	C	D	G	H	L	I	Code No.
150	13	16.5	26	35	18.5	21.5	103	121	BMR-150-12
185	13	18.5	28	40	22	22.5	106	128	BMR-185-12
185	17	18.5	28	40	22	22.5	106	128	BMR-185-16
300	13	23.5	33	51	24.5	24.5	124	148	BMR-300-12
	17	23.5	33	51	24.5	24.5	124	148	BMR-300-16
	21	23.5	33	51	24.5	24.5	124	148	BMR-300-20
