Copper Crimping Terminals For Copper Condutors (Long Barrel)
Braco Copper Long Barrel Tube Terminals:
Robust Performance
Crafted from high-purity copper tube, Braco Copper
Long Barrel Tube Terminals exemplify reliability.
Annealed to prevent cracking or breaks, these terminals
are designed for heavy-duty applications, ensuring
enhanced electrical and mechanical performance.
The extended barrel length adds to their resilience,
making them suitable for demanding scenarios. With
no inspection hole, these terminals prevent water or
moisture entry into crimped joints, ideal for outdoor
applications.
Tin plating is employed to prevent oxidization and
ensure maximum corrosion protection, adding to the
longevity of these terminals.
Material: Copper BS: 1977
Finish: Electro Tinned
Details coming soon...
Details coming soon...

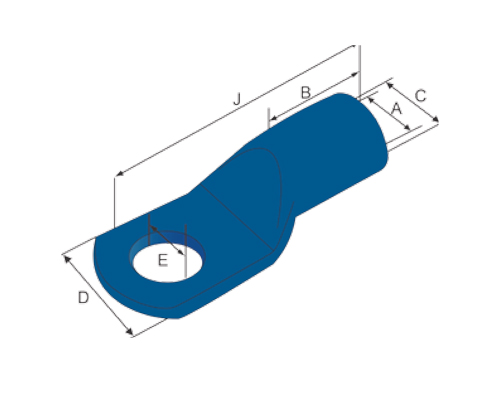

| Size Sq. mm |
Dimensions | BRACO CAT NO. | |||||
|---|---|---|---|---|---|---|---|
| E | A | C | D | B | J | ||
| 25 | 8.2 | 6.8 | 8.8 | 13 | 16 | 41 | CT-82 |
| 35 | 8.2 | 8.2 | 10.6 | 15 | 20 | 48 | CT-83 |
| 50 | 8.2 | 9.5 | 12.4 | 17 | 26 | 59 | CT-84 |
| 70 | 10.5 | 11.2 | 14.7 | 20 | 28 | 66 | CT-85 |
| 95 | 12.7 | 13.5 | 17.4 | 24 | 32 | 74 | CT-86 |
| 120 | 12.7 | 15 | 19.4 | 28 | 35 | 82 | CT-87 |
| 150 | 12.7 | 16.5 | 21.2 | 30 | 38 | 86 | CT-88 |
| 185 | 12.7 | 18.5 | 23.5 | 34 | 43 | 95 | CT-89 |
| 240 | 16.2 | 21 | 26.5 | 38 | 50 | 112 | CT-90 |
| 300 | 16.2 | 23.5 | 30 | 43 | 55 | 120 | CT-91 |
| 400 | 20.3 | 26.8 | 34.8 | 50 | 58 | 135 | CT-92 |
| 500 | 21 | 30 | 39 | 56 | 70 | 150 | CT-93 |
| 630 | 21 | 35 | 45 | 65 | 76 | 165 | CT-94 |
| 800 | - | 39 | 50.5 | 73 | 105 | 200 | CT-95 |
| 1000 | - | 43 | 53.7 | 81 | 130 | 240 | CT-96 |
