Earth Rod to Cable "G" Clamps

Material: Gunmetal with M 1O * 25 mm Phosphor Bronze
Set Screw (ERR 1035 in Naval Brass with M6 * 20 mm Stainless steel set screw).
*Suitable for use with 8 mm solid circular copper conductor

Braco clamps are used for joining earth rods to different sizes of stranded copper conductor.The clamps have a high resistance to corrosion and are mechanically strong to ensure a lasting connection.

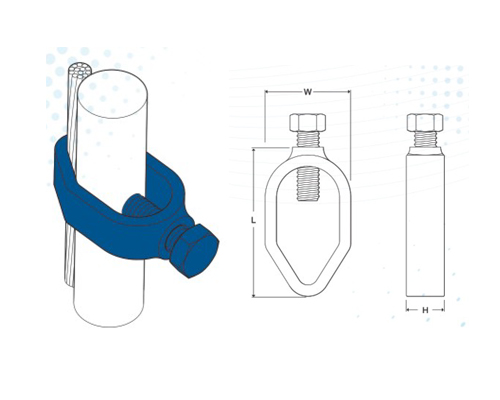

Technical Specification

Earth Rod Shank 0 MM	Conductor Range mm	L mm	W mm	H mm	Part Number
9.5	6 - 35	32	20	16	BCLG 9
12.7	6 - 35	34	25	15	BCLG 121
12.7	35 - 70	41	25	17	BCLG 122
14.2	6 - 16	34	25	15	BCLG 141
	16 - 70	41	25	17	BCLG 142
	70 - 185	48	30	19	BCLG 143
15	6 - 16	34	25	15	BCLG 151
	16 - 70	41	25	17	BCLG 152
	70 - 150	48	30	19	BCLG 153
16	6 - 70	41	25	17	BCLG 161
16	70 - 120	48	30	19	BCLG 162
17.2	6 - 95	48	30	19	BCLG 171
20	6 - 70	48	30	19	BCLG 201
