This versatile range of Braco U'Bolt Clamps can be used to connect flat tapes and stranded cables to earth rods, reinforcing bars (re-bar),hand rails etc
This versatile range of Braco U'Bolt Clamps can be used to connect flat tapes and stranded cables to earth rods, reinforcing bars (re-bar),hand rails etc
Used to connect flat tapes in horizontal position on the rod
| Nominal Rod Diameter | Hole centres - mm | L mm | W mm | H mm | Part Number |
|---|---|---|---|---|---|
| 5/8" | 30 | 58 | 62 | 33 | BUB 1 |
| 3/4" | 37 | 70 | 62 | 33 | BUB 2 |
| 1" | 37 | BUB 3 | |||
| 1 1/4 " | 41 | 85 | 68 | 33 | BUB 4 |
| 1 1/2 " | 46 | 90 | 75 | 33 | BUB 5 |
| 2" | 64 | 100 | 90 | 33 | BUB 6 |

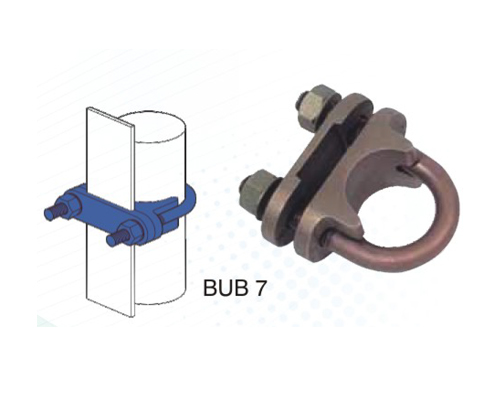

Used to connect flat tapes in vertical position on the rod
| Nominal Rod Diameter | Hole centres - mm | L mm | W mm | H mm | Part Number |
|---|---|---|---|---|---|
| 5/8" | 25 | 68 | 62 | 33 | BUB 7 |
| 3/4" | 25 | 70 | 62 | 33 | BUB 8 |
| 1" | 25 | BUB 9 | |||
| 1 1/4 " | 31 | 85 | 68 | 33 | BUB 10 |
| 1 1/2 " | 38 | 90 | 75 | 33 | BUB 11 |
| 2" | 50 | 100 | 90 | 33 | BUB 12 |
Used to connect Stranded tapes in a vertical and horizontal position on the rod
| Nominal Rod Diameter | Hole centres - mm | L mm | W mm | H mm | Part Number |
|---|---|---|---|---|---|
| 5/8" | 16 - 95 | 57 | 51 | 40 | BUB 13 |
| 3/4" | 16 - 70 | 73 | 68 | 40 | BUB 14 |
| 5/8" | 70 - 185 | 57 | 51 | 40 | BUB 15 |
| 3/4" | 70 - 150 | 73 | 68 | 40 | BUB 16 |
| 5/8" | 150 - 300 | 86 | 80 | 40 | BUB 17 |
| 3/4" | 150 - 300 | 98 | 93 | 40 | BUB 18 |
