Copper Crimping Reducer Terminals For Aluminium Conductor
Braco Copper Crimping Reducer Terminals:
Efficient Aluminum Conductor Termination
Designed for tunnel-type terminal blocks, Braco Copper
Crimping Reducer Terminals efficiently terminate one
or more aluminum conductors to a smaller area. Ideal
for fuse gears, cut-outs, meters, etc., these terminals
ensure secure connections.
Braco can tailor-produce any copper reducing link you
may need, offering versatile solutions. The presence
of copper at the termination end enhances currentcarrying
capacity in a compact space for optimal
performance.
Tinning prevents oxidization, ensuring maximum
corrosive protection and longevity. Trust Braco for
efficient and reliable aluminum conductor termination
in various applications.
Material: Copper BS: 1977
Finish: Electro Tinned
Details coming soon...
Details coming soon...
| Size Sq. mm |
Dimensions | BRACO CAT NO. | |||||
|---|---|---|---|---|---|---|---|

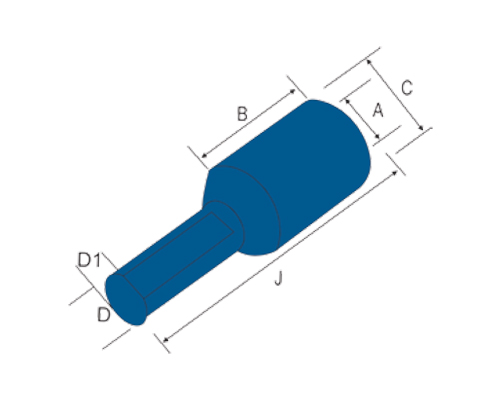

| A | C | D | D-1 | B | J | ||
| 2.5 | 2.5 | 4.7 | 4.5 | 4 | 6 | 20 | WPC-1 |
| 2.5 | 4.7 | 3.8 | 3.3 | 6 | 20 | WPC-7 | |
| 4 | 2.8 | 4.7 | 4.5 | 4 | 6 | 20 | WPC-15 |
| 2.8 | 4.7 | 3.8 | 3.3 | 6 | 20 | WPC-16 | |
| 6 | 3.1 | 4.7 | 4.5 | 4 | 6 | 20 | WPC-17 |
| 3.1 | 4.7 | 3.8 | 3.3 | 6 | 20 | WPC-18 | |
| 10 | 3.8 | 5.5 | 4.5 | 4 | 9 | 23 | WPC-19 |
| 3.8 | 5.5 | 3.8 | 3.3 | 9 | 23 | WPC-20 | |
| 4.4 | 6.2 | 4.5 | 4 | 9 | 23 | WPC-21 | |
| 4.4 | 6.2 | 3.8 | 3.3 | 9 | 23 | WPC-22 | |
| 16 | 5.3 | 7.1 | 6 | 5.5 | 12 | 32 | WPC-23 |
| 5.3 | 7.1 | 6 | 5.5 | 12 | 37 | WPC-24 | |
| 5.3 | 7.1 | 3.8 | 3.3 | 12 | 30 | WPC-2 | |
| 25 | 7 | 9 | 6 | 5.5 | 12 | 32 | WPC-25 |
| 7 | 9 | 7.5 | 6.5 | 12 | 37 | WPC-3 | |
| 35 | 8 | 10 | 7.5 | 6.5 | 12 | 37 | WPC-4 |
| 50 | 9.2 | 11.2 | 7.5 | 6.5 | 16 | 41 | WPC-26 |
| 10.4 | 14 | 14 | 13 | 18 | 49 | WPC-5 | |
| Size Sq. mm |
Dimensions | BRACO CAT NO. | |||||
|---|---|---|---|---|---|---|---|
| A | C | D | D-1 | B | J | ||
| 70 | 11.5 | 13.8 | 7.5 | 6.5 | 18 | 43 | WPC-27 |
| 11.5 | 13.8 | 11.5 | 10.5 | 18 | 48 | WPC-6 | |
| 11.5 | 13.8 | 11.5 | 10.5 | 18 | 55 | WPC-28 | |
| 95 | 12.8 | 15.6 | 11.5 | 10.5 | 20 | 51 | WPC-29 |
| 12.8 | 15.6 | 7.5 | 6.5 | 20 | 48 | WPC-31 | |
| 12.8 | 15.6 | 12.8 | 11.8 | 20 | 58 | WPC-32 | |
| 120 | 14.8 | 17.8 | 7.5 | 6.5 | 22 | 50 | WPC-34 |
| 14.8 | 17.8 | 11.5 | 10.5 | 22 | 60 | WPC-35 | |
| 150 | 16 | 19.6 | 15.6 | 14 | 26 | 64 | WPC-10 |
| 16 | 19.6 | 11.5 | 10.5 | 26 | 64 | WPC-37 | |
| 185 | 18 | 22 | 15.6 | 14 | 32 | 70 | WPC-30 |
| 18 | 22 | 11.5 | 10.5 | 32 | 70 | WPC-38 | |
| 240 | 22 | 26 | 16 | 15 | 38 | 88 | WPC-44 |
| 22 | 26 | 16 | 14 | 38 | 78 | WPC-43 | |
| 300 | 24 | 28.7 | 16 | 15 | 42 | 92 | WPC-45 |
| 24 | 28.7 | 16 | 14 | 42 | 82 | WPC-47 | |
| 400 | 27 | 33.2 | 16 | 14 | 46 | 90 | WPC-101 |
