Copper Crimping Terminals With Inspection Hole For Copper Conductor (Heavy Duty)

Braco Copper Tube Crimping Terminals: Reliable Performance
Crafted from high-quality electrolytic copper tubes, Braco Copper Tube Crimping Terminals ensure efficient electrical conductivity and mechanical strength, resisting vibration. Versatile for cables of any size, especially in critical environments like electrical switching equipment, these terminals maintain reliable connections, preventing cracking or breaks between the barrel and the palm.

Undergoing annealing for optimal ductility, these terminals are designed for enduring performance. With an inspection hole for easy conductor insertion and a carefully designed barrel length for precise crimping, these terminals prioritize user-friendly efficiency. Tin plating prevents oxidation, offering maximum corrosion protection for lasting reliability in various applications.

Material: Copper BS: 1977
Finish: Electro Tinned

Features	Advantages
Tin Plated	To avoid oxidization and achieve Maximum corrosion protection
PVC Sleeves	To protect against electrical shocks

Details coming soon...

Size Sq. mm	Dimensions						BRACO CAT NO.

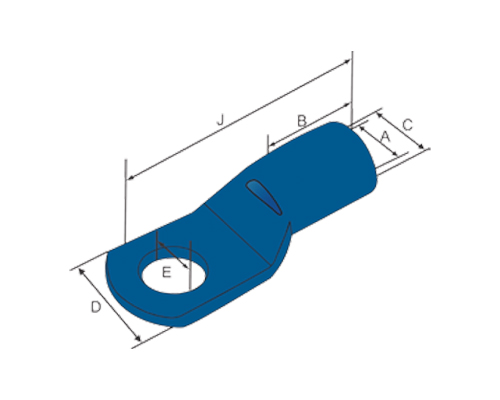

Size Sq. mm	E	A	C	D	B	J	BRACO CAT NO.
1.5	4.2	1.8	3.7	8	5	16	1.5-4 CT-711
	5.2	1.8	3.7	8	5	16	1.5-5 CT-538
	6.4	1.8	3.7	9	5	18	1.5-6 CT-539
2.5	4.2	2.4	4	8	7	18	2.5-4 CT-388
	5.2	2.4	4	9	7	20	2.5-5 CT-540
	6.5	2.4	4	10	7	20	2.5-6 CT-541
	8.4	2.4	4	11.5	7	26	2.5-8 CT-762
4	4.2	3.1	4.8	8	7	20	4-4 CT-764
	5.2	3.1	4.8	9	7	20	4-5 CT-389
	6.5	3.1	4.8	10	7	20	4-6 CT-543
	8.4	3.1	4.8	11.5	7	25	4-8 CT-763
6	4.2	3.8	5.5	9	9	23	6-4 CT-64
	5.2	3.8	5.5	10	9	23	6-5 CT-390
	6.5	3.8	5.5	11	9	26	6-6 CT-544
	8.4	3.8	5.5	12	9	26	6-8 CT-545
	10.5	3.8	5.5	15	9	32	6-10 CT-854
10	5.2	4.5	6.2	10	9	26	10-5 CT-822
	6.5	4.5	6.2	11	9	26	10-6 CT-353
	8.4	4.5	6.2	12	9	26	10-8 CT-547
	10.5	4.7	7.1	15	10	32	10-10 CT-855
	12.7	4.7	7.1	18	10	33	10-12 CT-856

Size Sq. mm	Dimensions						BRACO CAT NO.
Size Sq. mm	E	A	C	D	B	J	BRACO CAT NO.
16	5.2	5.4	7.1	10	11	30	16-5 CT-696
	6.4	5.4	7.1	11	11	30	16-6 CT-354
	8.4	5.4	7.1	12	11	31	16-8 CT-549
	10.5	5.5	7.9	15	13	35	16-10 CT-657
	12.7	5.5	7.9	18	13	40	16-12 CT-858
	16.5	5.5	7.9	22	13	40	16-16 CT-1616
25	6.4	6.8	8.8	13	12	32	25-6 CT-355
	8.4	6.8	8.8	13	12	32	25-8 CT-551
	10.5	6.8	8.8	16	12	38	25-10 CT-552
	12.7	6.8	8.8	18	12	40	25-12 CT-765
	16.5	6.8	8.8	24	13	45	25-16 CT-2516
35	6.5	8.2	10.6	15.3	12	35	35-6 CT-542
	8.4	8.2	10.6	15.3	12	35	35-8 CT-356
	10.5	8.2	10.6	16	12	38	35-10 CT-554
	12.7	8.2	10.6	17	15	42	35-12 CT-853
	16.5	8.2	10.6	24	14	50	35-16 CT-3516

Size Sq. mm	Dimensions						BRACO CAT NO.
Size Sq. mm	E	A	C	D	B	J	BRACO CAT NO.
50	6.5	9.5	12.4	18	16	43	50-6 CT-746
	8.4	9.5	12.4	18	16	43	50-8 CT-357
	10.5	9.5	12.4	18	16	43	50-10 CT-556
	12.7	9.5	12.4	18	16	43	50-12 CT-698
	15	9.5	12.4	20	17	49	50-14 CT-5014
	16	9.5	12.4	24	18	54	50-16 CT-699
	21	9.5	12.4	30	18	54	50-20 CT-5020
70	6.4	11.2	14.7	21	18	50	70-6 CT-748
	8.4	11.2	14.7	21	18	50	70-8 CT-557
	10.5	11.2	14.7	21	18	50	70-10 CT-358
	13	11.2	14.7	21	18	50	70-12 CT-559
	15	11.2	14.7	25	20	55	70-14 CT-795
	16	11.2	14.7	25	20	55	70-16 CT-780
	21	11.2	14.7	26	20	55	70-20 CT-781
95	6.4	13.5	17.4	25	20	55	95-6 CT-956
	8.4	13.5	17.4	25	20	55	95-8 CT-752
	10.5	13.5	17.4	25	20	55	95-10 CT-359
	13	13.5	17.4	25	20	55	95-12 CT-561
	15	13.5	17.4	26	20	55	95-14 CT-796
	17	13.5	17.4	26	22	60	95-16 CT-672
	21	13.5	17.4	28	22	64	95-20 CT-673

Size Sq. mm	Dimensions						BRACO CAT NO.
Size Sq. mm	E	A	C	D	B	J	BRACO CAT NO.
120	6.4	15	19.4	28	22	64	120-6 CT-1206
	8.5	15	19.4	28	22	64	120-8 CT-782
	10.5	15	19.4	28	22	64	120-10 CT-700
	12.7	15	19.4	28	22	64	120-12 CT-241
	15	15	19.4	28	22	64	120-14 CT-797
	17	15	19.4	28	22	64	120-16 CT-546
	21	15	19.4	28	22	64	120-20 CT-798
150	8.4	16.5	21.2	30	26	69	150-8 CT-783
	10.5	16.5	21.2	30	26	69	150-10 CT-676
	12.7	16.5	21.2	30	26	69	150-12 CT-242
	15	16.5	21.2	30	26	69	150-14 CT-799
	17	16.5	21.2	30	26	69	150-16 CT-564
	21	16.5	21.2	30	26	69	150-20 CT-565
185	8.5	18.5	23.5	34	32	78	185-8 CT-1858
	10.5	18.5	23.5	34	32	78	185-10 CT-652
	12.7	18.5	23.5	34	32	78	185-12 CT-639
	15	18.5	23.5	34	32	78	185-14 CT-800
	17	18.5	23.5	34	32	78	185-16 CT-243
	21	18.5	23.5	34	32	78	185-20 CT-704

Size Sq. mm	Dimensions						BRACO CAT NO.
Size Sq. mm	E	A	C	D	B	J	BRACO CAT NO.
240	8.5	21	26.5	38	38	92	240-8 CT-2408
	10.5	21	26.5	38	38	92	240-10 CT-787
	12.7	21	26.5	38	38	92	240-12 CT-705
	15	21	26.5	38	38	92	240-14 CT-801
	17	21	26.5	38	38	92	240-16 CT-244
	21	21	26.5	38	38	92	240-20 CT-567
300	10.5	23.5	30	43	42	101	300-10 CT-568
	12.7	23.5	30	43	42	101	300-12 CT-597
	15	23.5	30	43	42	101	300-14 CT-802
	17	23.5	30	43	42	101	300-16 CT-245
	21	23.5	30	43	42	101	300-20 CT-569

Size Sq. mm	Dimensions						BRACO CAT NO.
Size Sq. mm	E	A	C	D	B	J	BRACO CAT NO.
400	10.5	26.8	34.8	50	44	114	400-10 CT-410
	13	26.8	34.8	50	44	114	400-12 CT-412
	15	26.8	34.8	50	44	114	400-14 CT-414
	17	26.8	34.8	50	44	114	400-16 CT-246
	21	26.8	34.8	50	44	114	400-20 CT-571
500	13	30	39	56	48	124	500-12 CT-512
	17	30	39	56	48	124	500-16 CT-572
	21	30	39	56	48	124	500-20 CT-247
630	-	35	45	65	56	144	630BL CT-761
	17	35	45	65	56	144	630-16 CT-807
	21	35	45	65	56	144	630-20 CT-248
800	-	39	50.6	73	78	170	800BL CT-599
800	21	39	50.6	73	78	170	800-20 CT-808
1000	-	43	53.7	81	90	200	1000BL CT-590
1000	21	43	53.7	81	90	200	1000-20 CT-809
