Copper Tube In-Line Connectors
Braco Connectors: Seamless Heavy Duty Joints
Designed for jointing Copper conductors, Braco Connectors
offer a reliable solution for electrical connections. Crafted from
electrolytic copper tubes with dimensions matching CT series
lugs, these connectors are annealed and electro tin plated for
optimal performance.
Featuring an internal taper at both ends, Braco Connectors
facilitate the introduction of conductors, ensuring a seamless
joint. A dimple, if required, is incorporated to guarantee correct
positioning. These connectors can be provided with insulation for
added versatility.
Tinning on connectors not only provides a better finish but also
prevents oxidization, ensuring maximum corrosion protection.
Material: Copper BS: 1977
Finish: Electro Tinned
Details coming soon...
Details coming soon...

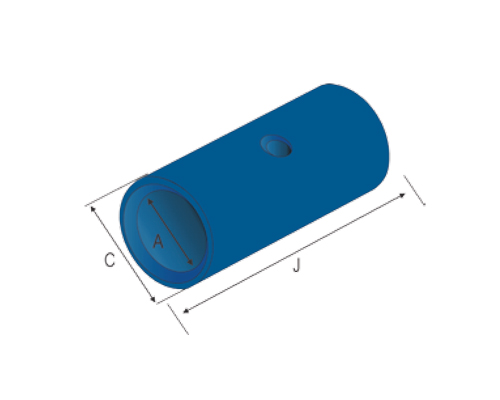

(Short Barrel)
| Braco Cat.No | Size Sq. mm |
Dimensions | ||
|---|---|---|---|---|
| A | C | J | ||
| ILC-453 | 1.5 | 1.9 | 3.8 | 15 |
| ILC-454 | 2.5 | 2.4 | 4 | 15 |
| ILC-3 | 4 | 3.1 | 4.8 | 15 |
| ILC-4 | 6 | 3.8 | 5.5 | 15 |
| ILC-460 | 10 | 4.5 | 6.2 | 20 |
| ILC-6 | 16 | 5.4 | 7.1 | 20 |
| ILC-24 | 25 | 6.8 | 8.8 | 32 |
| ILC-25 | 35 | 8.2 | 10.6 | 36 |
| ILC-26 | 50 | 9.5 | 12.4 | 40 |
| ILC-51 | 70 | 11.2 | 14.7 | 40 |
| ILC-52 | 95 | 13.5 | 17.4 | 45 |
| ILC-53 | 120 | 15 | 19.4 | 45 |
| ILC-54 | 150 | 16.5 | 21.2 | 55 |
| ILC-55 | 185 | 18.5 | 23.5 | 65 |
| ILC-56 | 240 | 21 | 26.5 | 80 |
| ILC-57 | 300 | 23.5 | 30 | 85 |
| ILC-58 | 400 | 26.8 | 34.8 | 90 |
| ILC-59 | 500 | 30 | 39 | 100 |
| ILC-61 | 630 | 35 | 45 | 110 |
| ILC-62 | 800 | 39 | 50.6 | 150 |
| ILC-63 | 1000 | 43 | 53.7 | 170 |
(Long Barrel)
| Braco Cat.No | Size Sq. mm |
Dimensions | ||
|---|---|---|---|---|
| A | C | J | ||
| ILC-41 | 1.5 | 1.9 | 3.8 | 22 |
| ILC-42 | 2.5 | 2.4 | 4 | 22 |
| ILC-43 | 4 | 3.1 | 4.8 | 22 |
| ILC-44 | 6 | 3.8 | 5.5 | 22 |
| ILC-45 | 10 | 4.5 | 6.2 | 22 |
| ILC-46 | 16 | 5.4 | 7.1 | 35 |
| ILC-47 | 25 | 6.8 | 8.8 | 47 |
| ILC-48 | 35 | 8.2 | 10.6 | 45 |
| ILC-49 | 50 | 9.5 | 12.4 | 50 |
| ILC-27 | 70 | 11.2 | 14.7 | 50 |
| ILC-28 | 95 | 13.5 | 17.4 | 60 |
| ILC-29 | 120 | 15 | 19.4 | 65 |
| ILC-30 | 150 | 16.5 | 21.2 | 70 |
| ILC-31 | 185 | 18.5 | 23.5 | 75 |
| ILC-32 | 240 | 21 | 26.5 | 89 |
| ILC-33 | 300 | 23.5 | 30 | 95 |
| ILC-34 | 400 | 26.8 | 34.8 | 115 |
| ILC-35 | 500 | 30 | 39 | 117 |
| ILC-36 | 630 | 35 | 45 | 120 |
