Long Barrel Aluminium Crimping Terminals For Aluminium Conductor

Braco Long Barrel Aluminium Crimping Terminals: Enhanced Performance
Manufactured from tubes drawn to the required sizes with a minimum conductivity of not less than 60% IACS, Braco Long Barrel Aluminium Crimping Terminals adhere to IS 8309:1993 standards. These terminals are designed to efficiently terminate cables of all sizes, serving electrical switching equipment applications.

The increased barrel length ensures enhanced electrical and mechanical performance, allowing for more crimps. With the absence of an inspection hole, these terminals prevent the entry of water or moisture into crimped joints, making them suitable for outdoor applications. Explore the enhanced performance of Braco Long Barrel Aluminium Crimping Terminals in various settings.

Material: Aluminium IS:5082:1981

Features	Advantages
Tin Plated	To avoid oxidization and achieve Maximum corrosion protection
PVC Sleeves	To protect against electrical shocks

Details coming soon...

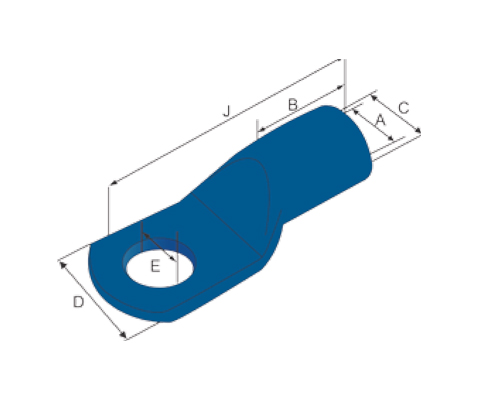

Size Sq. mm	Dimensions						BRACO CAT NO.
Size Sq. mm	E	A	C	D	B	J	BRACO CAT NO.
2.5	3.2	2	5.5	7	10	21	AT-551
2.5	3.7	2.6	5.5	7	10	21	AT-509
4	4.2	2.9	5.5	7	10	21	AT-555
4	5.2	2.9	5.5	9	10	27	AT-617
6	5.2	3.5	5.5	8	10	27	AT-558
6	6.4	3.5	5.5	11	10	27	AT-513
10	6.4	4.4	7.4	11	13	34	AT-514
10	8.2	4.4	7.4	13	13	34	AT-515
16	6.4	5.4	8.3	11	20	44	AT-552
	8.2	5.4	8.3	14	20	44	AT-516
	10.2	5.4	8.3	15	20	44	AT-517
25	8.2	7	9.7	14	24	52	AT-518
	10.2	7	9.7	17	24	52	AT-519
	12.7	7	9.7	18	24	52	AT-520
35	8.2	8	10.8	15	27	56	AT-521
35	10.2	8	10.8	17	27	56	AT-522
50	8.2	9.3	13	18	33	65	AT-655
	10.2	9.3	13	18	33	65	AT-512
	12.7	9.3	13	18	33	65	AT-524
70	8.2	11.1	15.4	22	39	73	AT-556
	10.2	11.1	15.4	22	39	73	AT-525
	12.7	11.1	15.4	22	39	73	AT-526

Size Sq. mm	Dimensions						BRACO CAT NO.
Size Sq. mm	E	A	C	D	B	J	BRACO CAT NO.
95	10.2	13	17.1	25	42	78	AT-527
	12.7	13	17.1	25	42	78	AT-528
	16.2	13	17.1	25	42	78	AT-529
120	10.2	14.8	19.6	28	48	89	AT-557
	12.7	14.8	19.6	28	48	89	AT-530
	16.2	14.8	19.6	28	48	89	AT-531
150	10.2	16.6	21.4	31	51	96	AT-658
	12.7	16.6	21.4	31	51	96	AT-532
	16.2	16.6	21.4	31	51	96	AT-533
185	10.2	18.5	24	34	54	102	AT-511
	12.7	18.5	24	34	54	102	AT-534
	16.2	18.5	24	34	54	102	AT-535
240	12.7	22	28	40	66	124	AT-536
240	16.2	22	28	40	66	124	AT-537
300	16.2	24	31	44.7	70	138	AT-500
300	20.3	24	31	44.7	70	138	AT-559
400	20.3	28	36	51	84	158	AT-560
500	20.3	31	41	58	90	170	AT-596
630	20.3	35	46	66	104	188	AT-561
800	-	39	51	73	115	218	AT-618
1000	-	43.5	57	81	150	270	AT-619
