Earth Rod to Tape ‘A’ Clamps

Material: Aluminum Bronze with M 10 x 25 mm Phosphor Bronze set Screw

Braco clamps are used for joining earth road to different sizes of copper tape. The clamps have a high resistance to corrosion and are mechanically strong to ensure a lasting connection.
The aluminum version is mainly used for connecting aluminum tape to a puddle flange rod as part of a lighting protection system.

Technical Specification

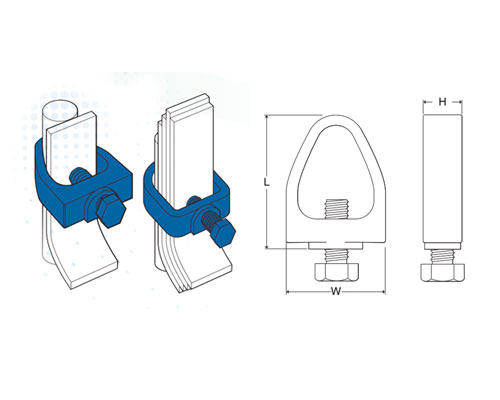

 Earth Rod Shank 0 MM Maximum Tape Size L mm   W mm    H mm  Part Number
12.7 26 x 15 43 37 17 BCLA 121
32 x 15 43 45 18 BCLA 122
39 x 15 44 51 22 BCLA 123
14.2  26x 14 43 37 17 BCLA 141
32 x 14 43 45 18 BCLA 142
39 x 14 44 51 22 BCLA 143
51 x 16 47 64 20 BCLA 144
15 26 x 13 43 37 17 BCLA 151
32 x13 43 45 18 BCLA 152
39 x 13 44 51 22 BCLA 153
51 x 15 47 64 20 BCLA 154
16 26 x 12 43 37 17 BCLA 161
32 x 12 43 45 18 BCLA 162
39 x 12 44 51 22 BCLA 163
51 x 14 47 64 20 BCLA 164
17.2 26 x11 43 37 17 BCLA 171
32 x11 43 45 18 BCLA 172
39 x11 44 51 22 BCLA 173
51 x 13 47 64 20 BCLA 174
26 x 18 55 40 25 BCLA 175
20 26 x 8 43 37 17 BCLA 201
32 x 8 43 45 18 BCLA 202
39 x 8 44 51 22 BCLA 203
51 x 10 47 64 20 BCLA 204
26 x 16 55 40 25 BCLA 205
