GI PVC Coated Flexible Conduit
Braco’s GI PVC Coated Flexible Conduit is engineered to provide reliable protection and flexibility for electrical wiring in industrial, commercial, and infrastructure projects. Built from high-strength galvanized iron (GI) and coated with premium PVC, these conduits deliver enhanced resistance against corrosion, abrasion, and harsh weather conditions.
The GI PVC Coated Flexible Conduit is widely used for safeguarding cables in demanding environments, offering easy installation, superior bendability, and long service life. With excellent insulation properties and robust mechanical strength, Braco’s conduits ensure secure routing of wires and cables while meeting international safety standards.Whether for power plants, data centers, factories, or commercial complexes, Braco’s GI PVC Coated Flexible Conduit provides a trusted solution for efficient cable management and maximum electrical safety.
| Product Name | PVC Coated Flexible Conduit |
| Material | Galvanized Steel with PVC Coating |
| Size Range | 16 MM to 50 MM |
| Included Accessories | Brass Adaptors, Squeeze Straight Connector |
| Length | Available in 25 Meter rolls or customizable upon request |
| Color Options | Gray or Black |
Discover the BRACO Brand PVC-coated Flexible Steel Conduit, engineered for versatile applications and installations in confined spaces requiring exceptional flexibility.
Features:
- Constructed from high-grade, hot-dipped galvanized low-carbon steel infused with PVC for durability.
- Continuous interlocking metal strip design enhances flexibility and structural integrity.
- Interior surface facilitates easy wire fishing, streamlining installation processes.
- Suitable for 3-hour through-penetration fire systems, ensuring robust fire protection.
| Brand Name | BRACO |
| Available Colors | Gray or Black |
| Flexibility | Yes |
| Length | Standard 25 meters or customizable upon request |
| Material | Galvanized Steel, PVC |
| Size Range | 16 MM to 50 MM |
Applications:
The BRACO Brand PVC-coated Flexible Conduit is ideal for a wide range of applications including:
- Mechanical protection of cables and wires in tunnels, hospitals, high-rise office blocks, public buildings, airlines, and underground installations.
- Suitable for tight-spot installations and areas requiring water tightness.
- Features a polyvinyl coating in black color with a spiral corrugated pattern finished surface, ensuring resistance to corrosion.
- Compatible with galvanized steel and helically wound conduit systems.

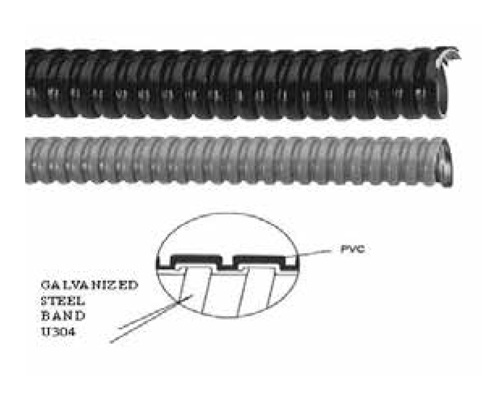

BRACO BRAND PVC Coated Flexible Conduit:
| Construction | |
|---|---|
| Core Material | Galvanized Steel |
| Style | Square Lock |
| Jacket | Vacuum PVC |
Features:
- Provides durable protection for cables and wires in various applications
- Square lock style ensures secure installation
- Vacuum PVC jacket enhances flexibility and resilience
- Flexible working temperature range: -10°C to 70°C
- Trust BRACO for reliable and versatile PVC coated flexible conduit solutions.
| Normal Size | TYPE | Inside Diameter | Outside Diameter Over Jacket | Min Bend Radius | Length of Roll |
|---|---|---|---|---|---|
| Min. (MM) / Max. (MM) | Min. (MM) / Max. (MM) | ||||
| 16mm | BC-16 | 12.70 /12.90 | 17.00 / 17.20 | 65 | 20 / 30Mtrs. |
| 20mm | BC-20 | 16.00 / 16.50 | 20.00 / 20.50 | 75 | 20 / 25Mtrs. |
| 25mm | BC-25 | 20.80 / 21.30 | 25.00 / 25.50 | 100 | 20 / 25Mtrs. |
| 32mm | BC-32 | 28.20 / 28.70 | 32.00 / 32.50 | 125 | 15 / 20Mtrs. |
| 40mm | BC-40 | 32.70 / 33.20 | 38.00 / 38.50 | 150 | 15 / 20Mtrs. |
| 50mm | BC-50 | 46.00 / 46.50 | 50.20 / 50.70 | 175 | 10Mtrs. |
| Thickness of galvanized steel strip | Coating of PVC compound granules |
|---|---|
| 0.19 mm for 16mm to 32mm (Tolerance -+0.02) 0.20 mm for 40mm to 50mm(Tolerance -+0.02) |
0.6 mm for 16mm to 32mm (Tolerance -+0.2) 0.80 mm for 40mm to 50mm (Tolerance -+0.2) |
Packing:
| Construction | |
|---|---|
| Export Worthy Packing | Spool and Carton |
| Printing | 4 Color |
| Additional Protection | PVC Stretch Film wrapped around the top of the spool |
Ensure your products arrive safely and professionally presented with our export-worthy packing solution, including spool and carton packaging. The inclusion of 4-color printing adds a touch of branding and clarity to your packaging. Plus, the PVC stretch film provides extra protection, keeping your products secure during transit.
